aerial

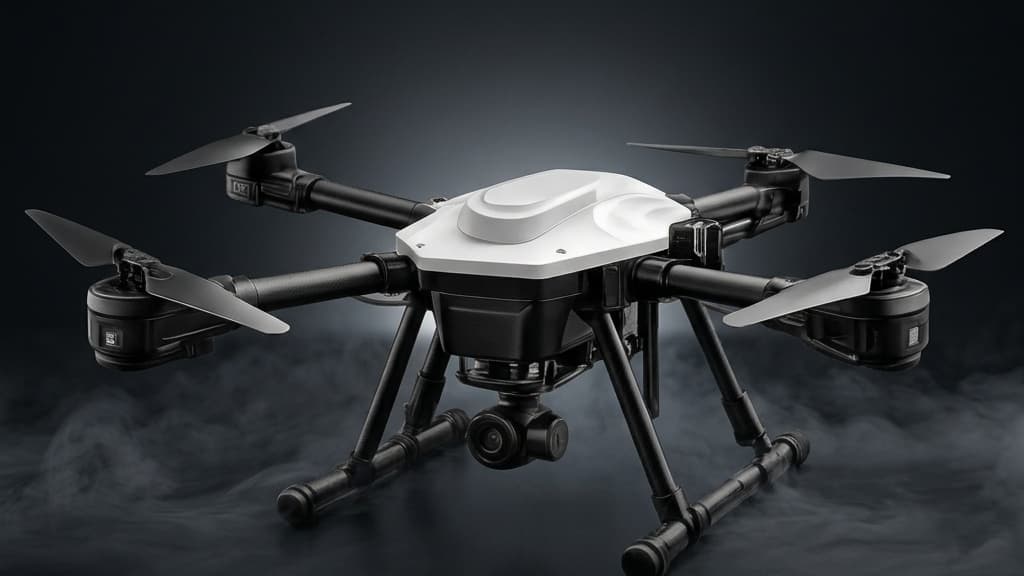

MB-22 UAV
Optical Navigation Surveillance Drone
Weight without battery3590 g
Dimensions680×680 mm
Battery6S 40000mAh
Key Capabilities
01
Advanced Optical Navigation
Equipped with an optical stabilization system that allows the drone to maintain position at altitudes from 1 to 600 meters, delivering performance comparable to satellite navigation.
Autonomous Landing & RTH
Supports automatic Return-to-Home on signal loss and can perform safe, autonomous landings regardless of control signal availability, even with a depleted battery.
UniRC 7 Pro Ground Control System
Features an Android-based remote controller with a 7-inch display, HDMI/Ethernet outputs, and a dual-band communication range of up to 20 km.
Technical Specifications
Weight without battery3590 g
Dimensions680×680 mm
Battery6S 40000mAh
Payload CapacityUp to 3.5 kg
Max Flight TimeUp to 80 min (no payload)
Flight RangeUp to 15 km
CamerasFullHD with 6x zoom + Thermal 640×512
Control Frequency2400 and 5800 MHz
Applications
01GPS-denied surveillance
02Long-range aerial reconnaissance
03Signal-jammed environment monitoring
04Day/Night tactical operations
Mountable Payloads
Optical Navigation Module
Day Camera FullHD 6x Zoom
Thermal Camera 640×512
Enhanced 2.4/5.5 GHz Antenna (Optional)
